USFULL FU9000B Series HVAC & Pump Inverter is an optimized VFD special for fan and pump. Simple and easy to use, the VFD can drive the fans and pumps in wastewater treatment, HVAC, chemical, metallurgical, electric power and other industries.
Application：
fans
pumps
获取报价
VFD model
Output power(kW)
Input current(A)
Output current(A)
FU9000B-1R5-4
1.5
5
3.7
FU9000B-2R2-4
2.2
6
5
FU9000B-004-4
4
15
9.5
FU9000B-5R5-4
5.5
20
13
FU9000B-7R5-4
7.5
27
17
FU9000B-011-4
11
35
25
FU9000B-015-4
15
44
32
FU9000B-018-4
18
46
38
FU9000B-022-4
22
54
45
FU9000B-030-4
30
75
60
FU9000B-037-4
37
90
75
FU9000B-045-4
45
108
92
FU9000B-055-4
55
142
115
FU9000B-075-4
75
177
150
FU9000B-090-4
90
200
180
FU9000B-110-4
110
240
215
FU9000B-132-4
132
278
250
FU9000B-160-4
160
310
305
FU9000B-185-4
185
335
330
FU9000B-200-4
200
385
380
FU9000B-220-4
220
430
425
FU9000B-250-4
250
465
460
FU9000B-280-4
280
540
530
FU9000B-315-4
315
605
600
FU9000B-355-4
355
655
650
FU9000B-400-4
400
725(660)
720
FU9000B-450-4
450
825(745)
820
FU9000B-500-4
500
863(800)
860
What Is a USFULL FU9000B Series Pump & Fan Inverter
USFULL FU9000B Series HVAC & Pump Inverter, which is an optimized VFD special for fan and pump. Simple and easy to use, the VFD can drive the fans and pumps in wastewater treatment, HVAC, chemical, metallurgical, electric power and other industries.Using advanced vector control technologies, the VFD can drive both synchronous motors (SMs) and asynchronous motors (AMs) in various complex work conditions. In addition, the VFD has been embedded with various fan and pump application macros, such as PID, multi-pump control, constant pressure water supply, effectively relieving engineers from the difficulty in debugging.

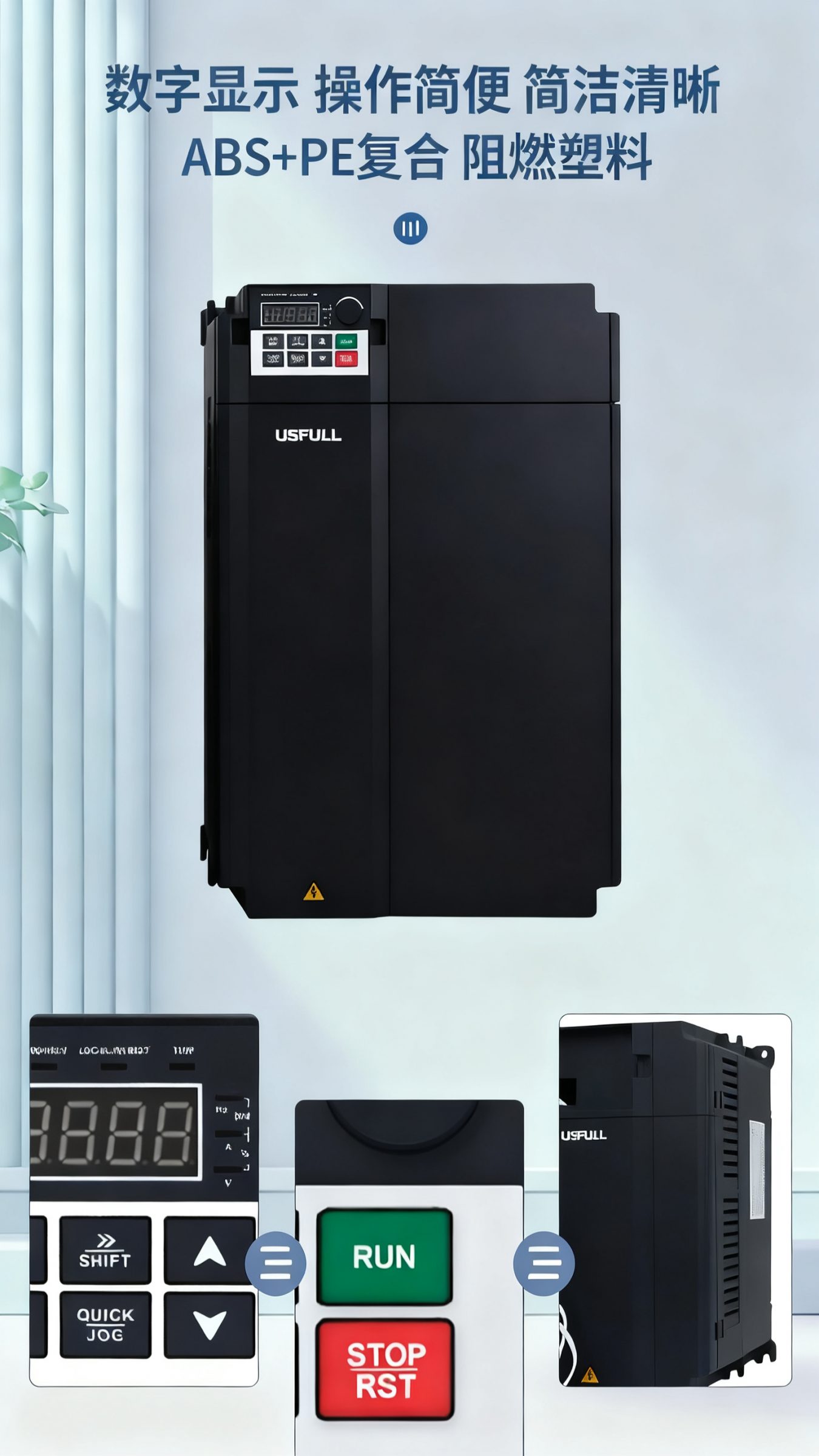

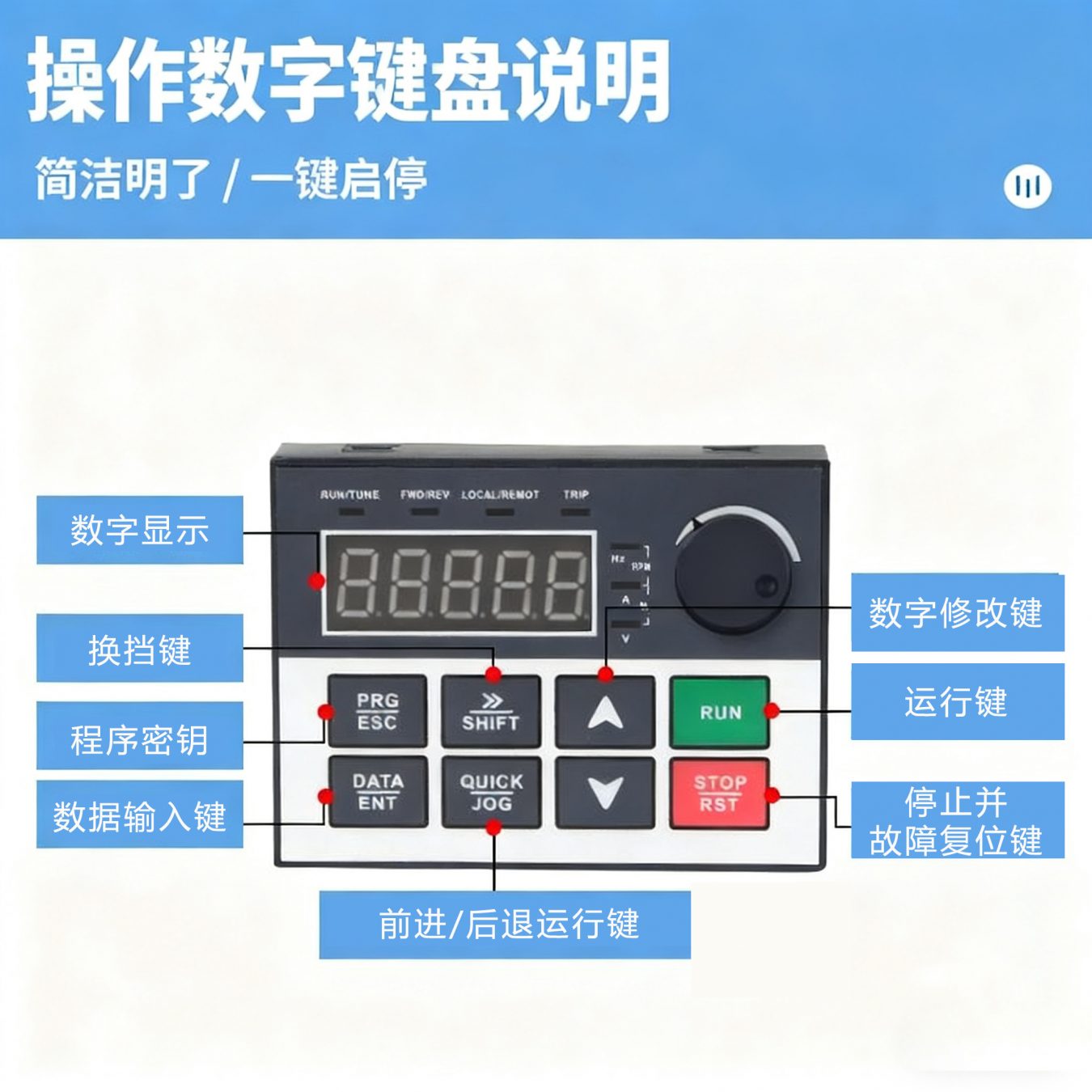

USFULL FU9000B Series HVAC & Pump Inverter Operation Panel Instructions
The operation panel of the USFULL FU9000B Series HVAC & Pump Inverter is designed to ensure simplicity and user-friendliness. Key features include:
Simple and responsive keypadfor easy control.
Clear screen displaythat provides real-time data and system status.
Unique and modern appearancethat combines aesthetics with functionality.
The intuitive design of the operation panel ensures that users can quickly understand and operate the inverter with minimal training.

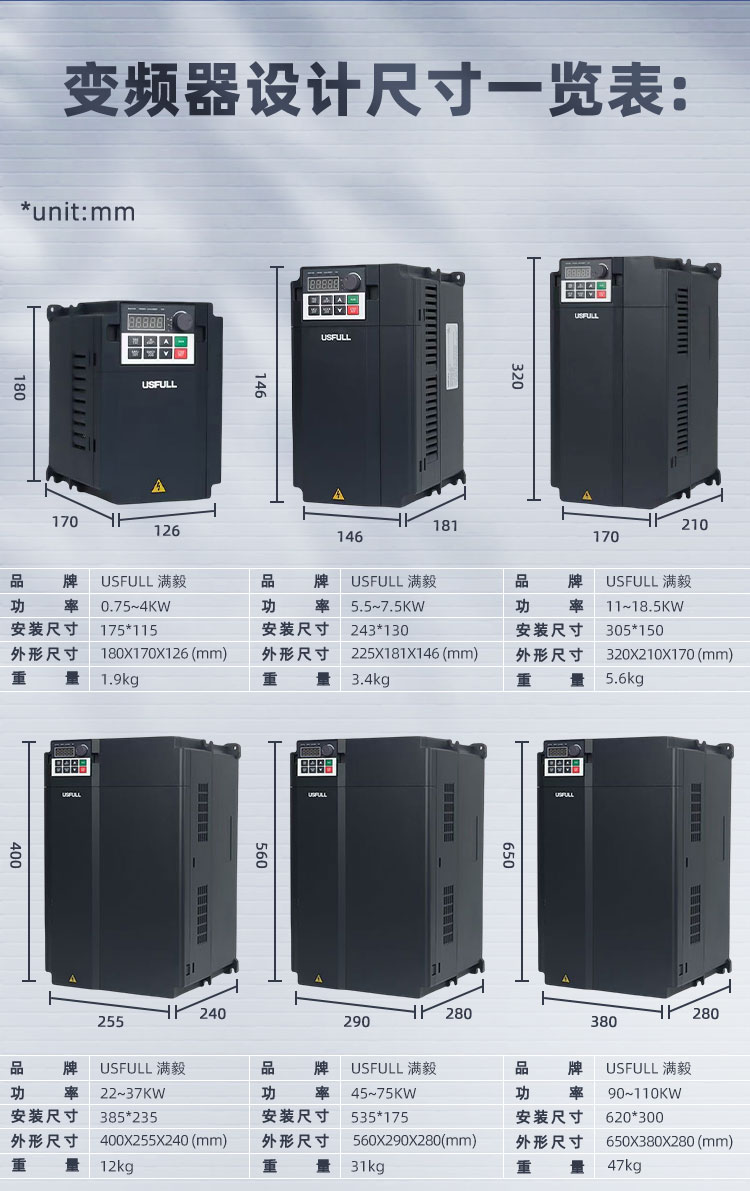

Below Are the Product Specifications
If you have other specifications, please contact us and USFULL can provide customized requirements.

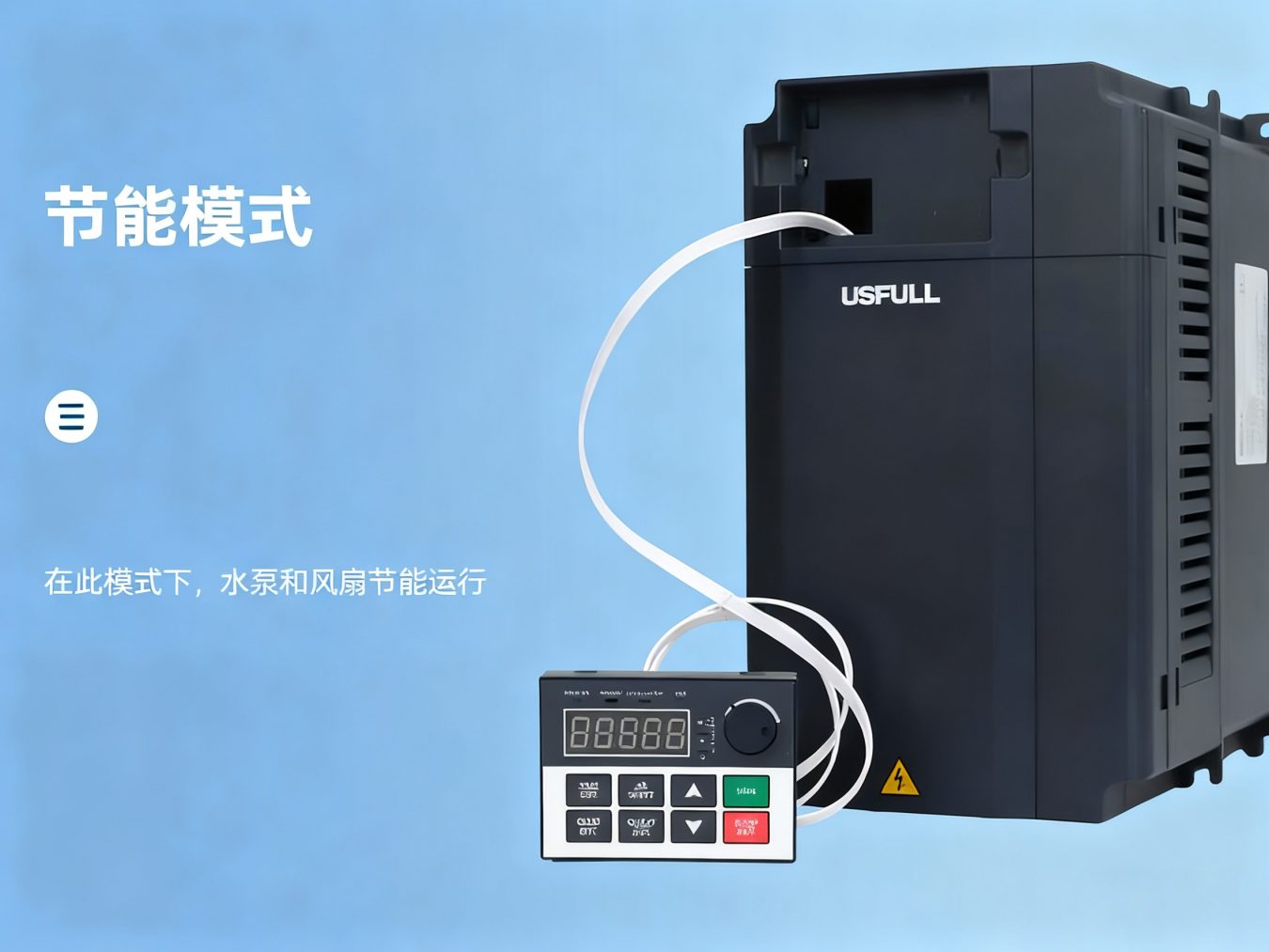

ECO Energy-Saving Mode of the FU9000B Inverter
The FU9000B Series HVAC & Pump Inverter is equipped with an ECO energy-saving mode, which is specifically designed to optimize power consumption. This mode allows pumps and fans to operate at reduced energy levels without compromising performance, making it an excellent choice for cost-effective and eco-friendly operations.

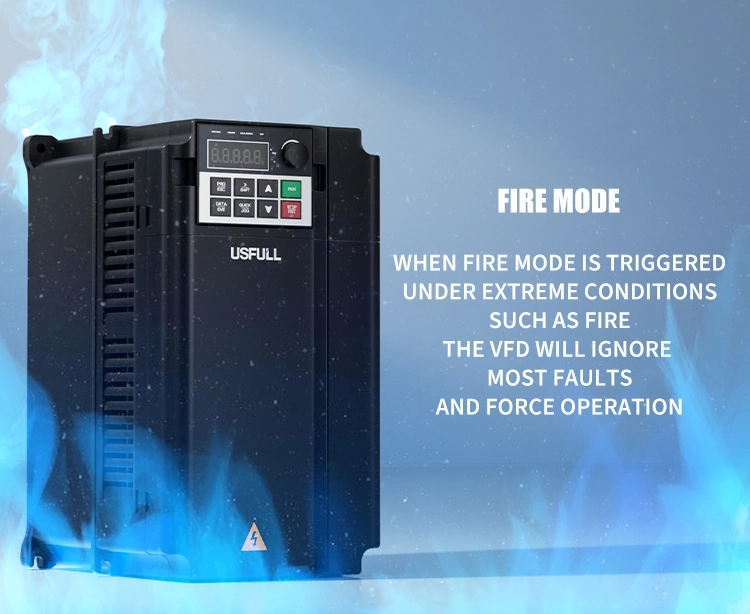

Fire Mode of the FU9000B Inverter
The FU9000B Series HVAC & Pump Inverter also features a Fire Mode, which is critical during emergencies such as fires. In this mode, the inverter bypasses most fault protections to ensure continuous operation, delivering maximum performance under extreme conditions to support safety protocols.

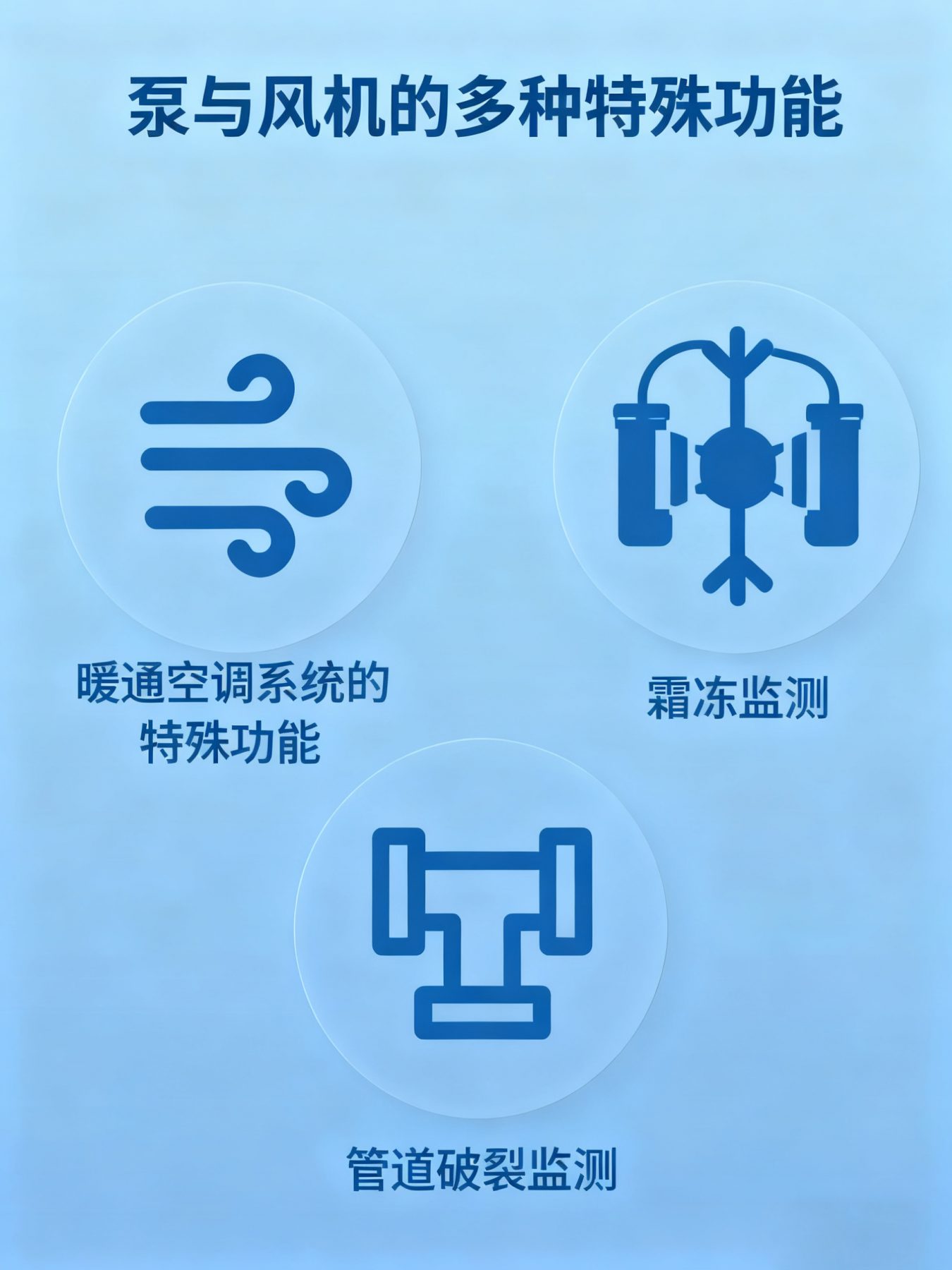

Adapts to Many Special Functions of Pumps and Fans
Many special functions for pumps and fans, such as pipe rupture monitoring frost monitoring special functions for HVAC systems.
Pipe Rupture Monitoring:Alerts users to potential pipe failures.
Frost Monitoring:Prevents damage caused by freezing conditions.
HVAC-Specific Functions:Supports advanced heating, ventilation, and air conditioning operations.
Why Choose USFULL FU9000B Series HVAC & Pump Inverter?
Every FU9000B inverter undergoes rigorous testing to ensure top-notch performance and reliability. Using premium spare parts, innovative design, and stringent quality control, USFULL guarantees a product that meets and exceeds customer expectations.
Experience the ultimate in efficiency, durability, and satisfaction with the USFULL FU9000B Series Pump & Fan Inverter. For more information, contact us today!
