USFULL Solar Pump Inverter-A3

What is a Solar Pump Inverter?

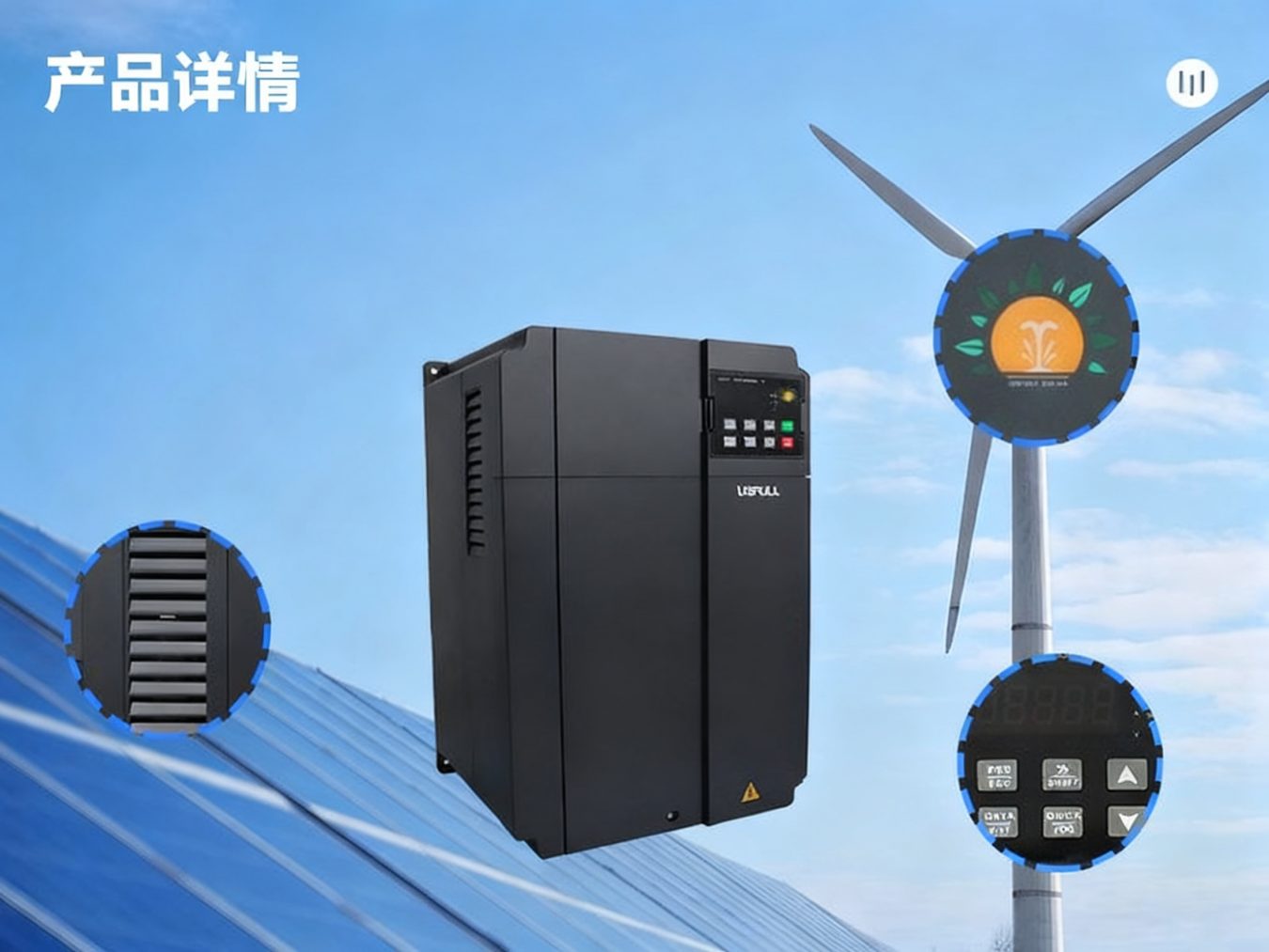

USFULL FU9000SI series solar pump inverter is newly developed high performance and high efficiency inverter. The USFULL solar pump inverter is designed for solar irrigation systems, allowing for efficient energy harvesting from the sun to power your pump system.

The FU9000SI solar pump inverter is widely used in irrigation, water reservoir, rural water supply, swimming pool and other water supply projects.

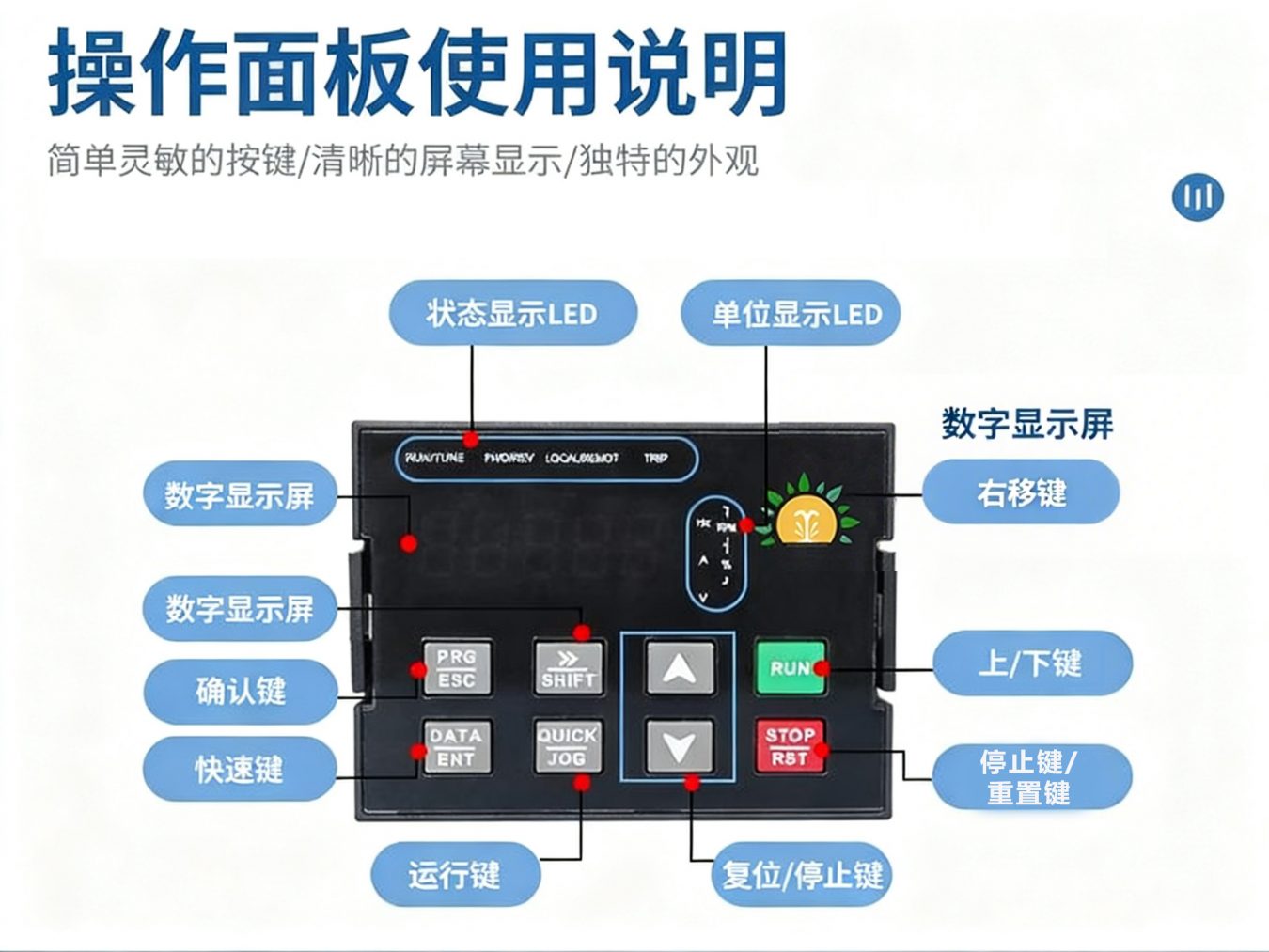

USFULL Solar Pump Inverter Operation Panel Instructions

The operation panel of the USFULL Solar Pump Inverter is designed to ensure simplicity and user-friendliness. Key features include:

• Simple and responsive keypadfor easy control.
• Clear screen displaythat provides real-time data and system status.
• Unique and modern appearancethat combines aesthetics with functionality.

The intuitive design of the operation panel ensures that users can quickly understand and operate the inverter with minimal training.

You can modify the parameters, monitor the working status, and start or stop the FU9000SI Solar Pump Inverters by operating the keypad. If the keypad is externally installed on an optional bracket, it can be 70 meters away from the inverter at most.



The inverter has three levels menu, which are:

1. Group number of function code (first-level menu)
2. Tab of function code(second-level menu)
3. Set value of function code (third-level menu)

Remarks:

Press both the PRG/ESC and the DATA/ENT can return to the second-level menu from the third-level menu. The difference is that pressing DATA/ENT will save the set parameters into the control panel, and then return to the second-level menu with shifting to the next function code automatically; while pressing PRG/ESC will directly return to the second-level menu without saving the parameters, and keep staying at the current function code.

Under the third-level menu, if the parameter has no flickering bit, it means the function code can not be modified. The possible reasons could be:

1. This function code is not modifiable parameter, such as actual detected parameter, operation records, and so on;
2. This function code is not modifiable in the running state, but modifiable in the stop state.

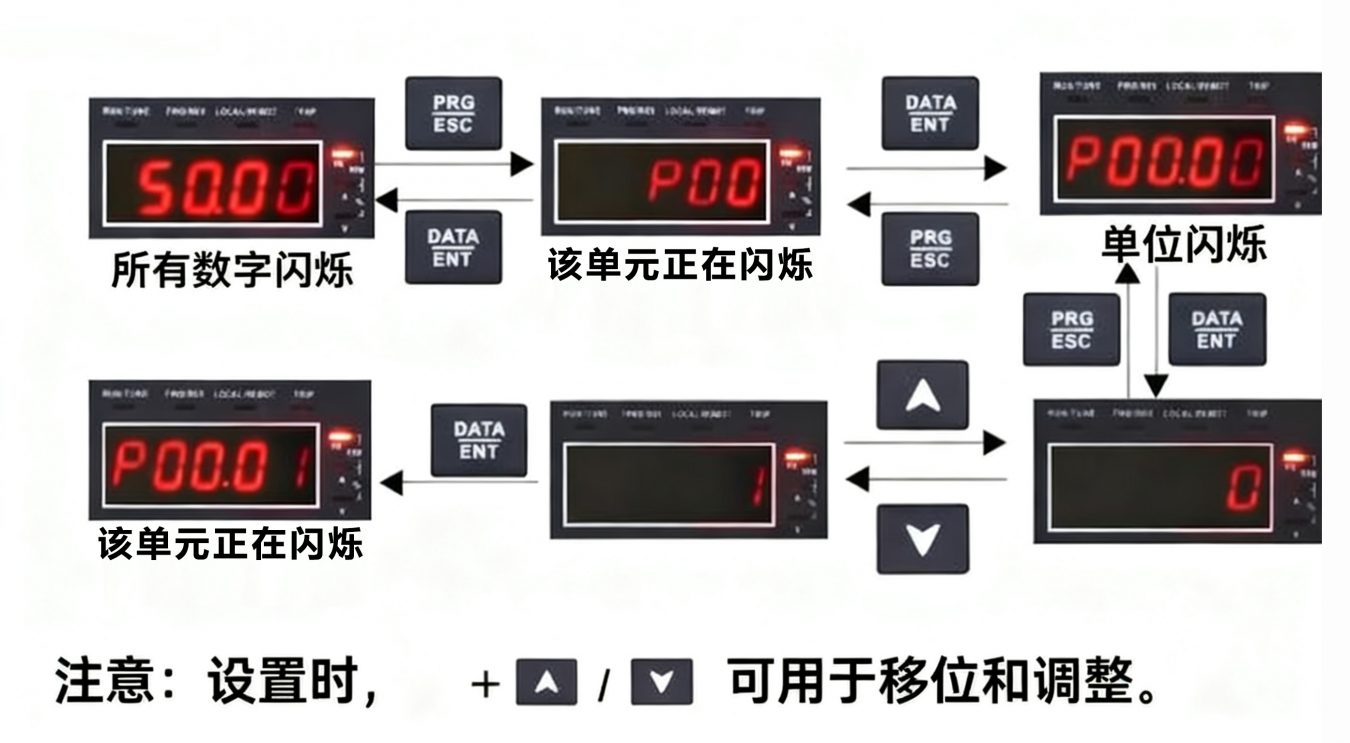

Example: Set function code P0-00 from 0 to 1.

Introduction of USFULL Solar Pumping System

USFULL established in 2005, is a professional manufacturer and exporter specializing in solar pumping irrigation systems. With over a decade of experience, the company focuses on research and development (R&D), production, and sales, delivering high-quality and customized solutions to clients worldwide.

The USFULL FU9000SI series solar pump inverter is a testament to the company’s commitment to innovation and quality. Designed specifically for AC pumps in solar pumping systems, it ensures efficient and reliable operation. USFULL also provides comprehensive after-sales services, ensuring that customers receive timely support.

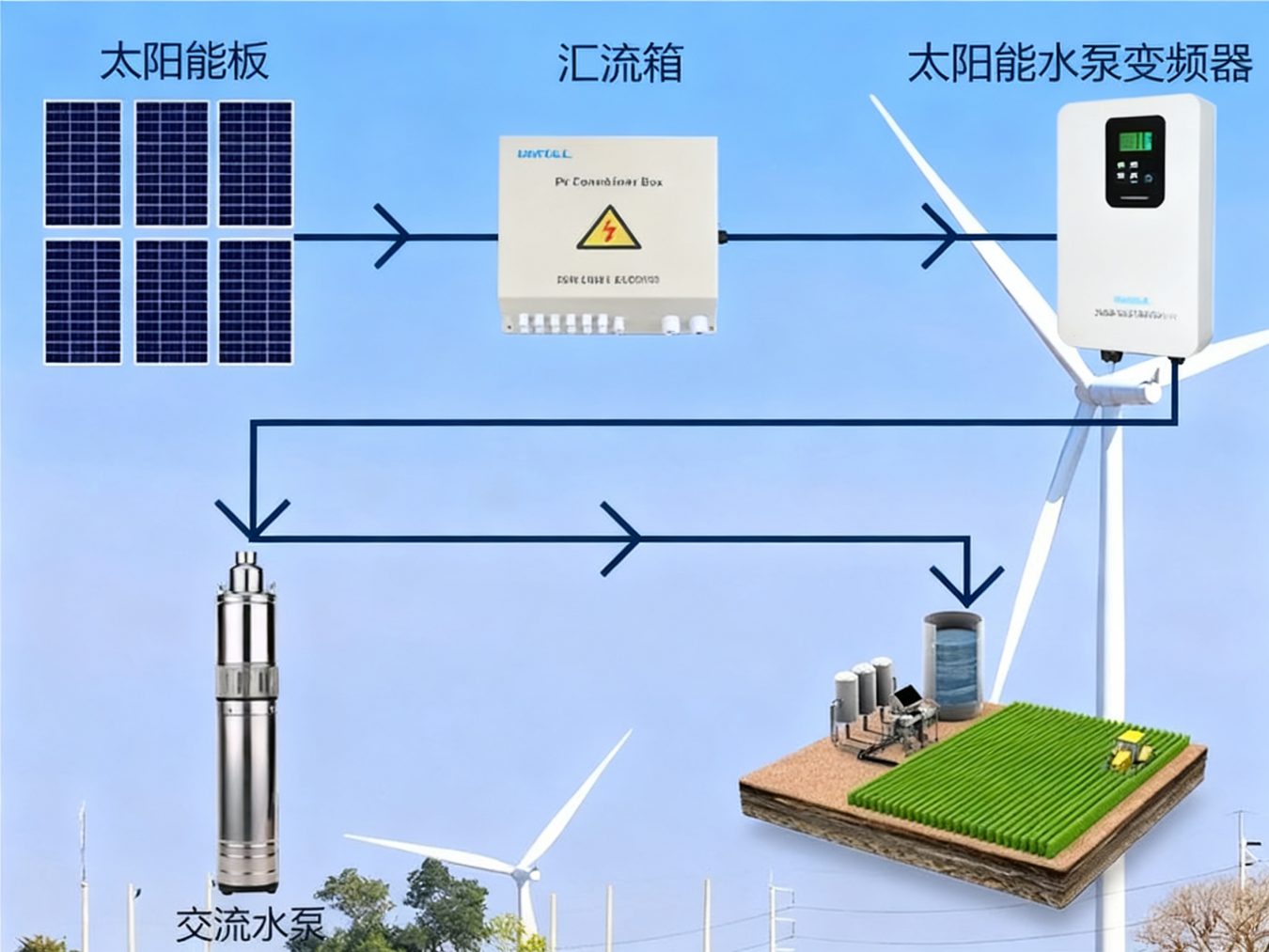

How to connect USFULL Solar Pump Inverter?

The connection of the USFULL Solar Pump Inverter is straightforward . If any questions or issues arise during the installation process, the USFULL team is available to offer professional guidance and solutions. This commitment to customer support underscores USFULL’s dedication to ensuring a seamless user experience.

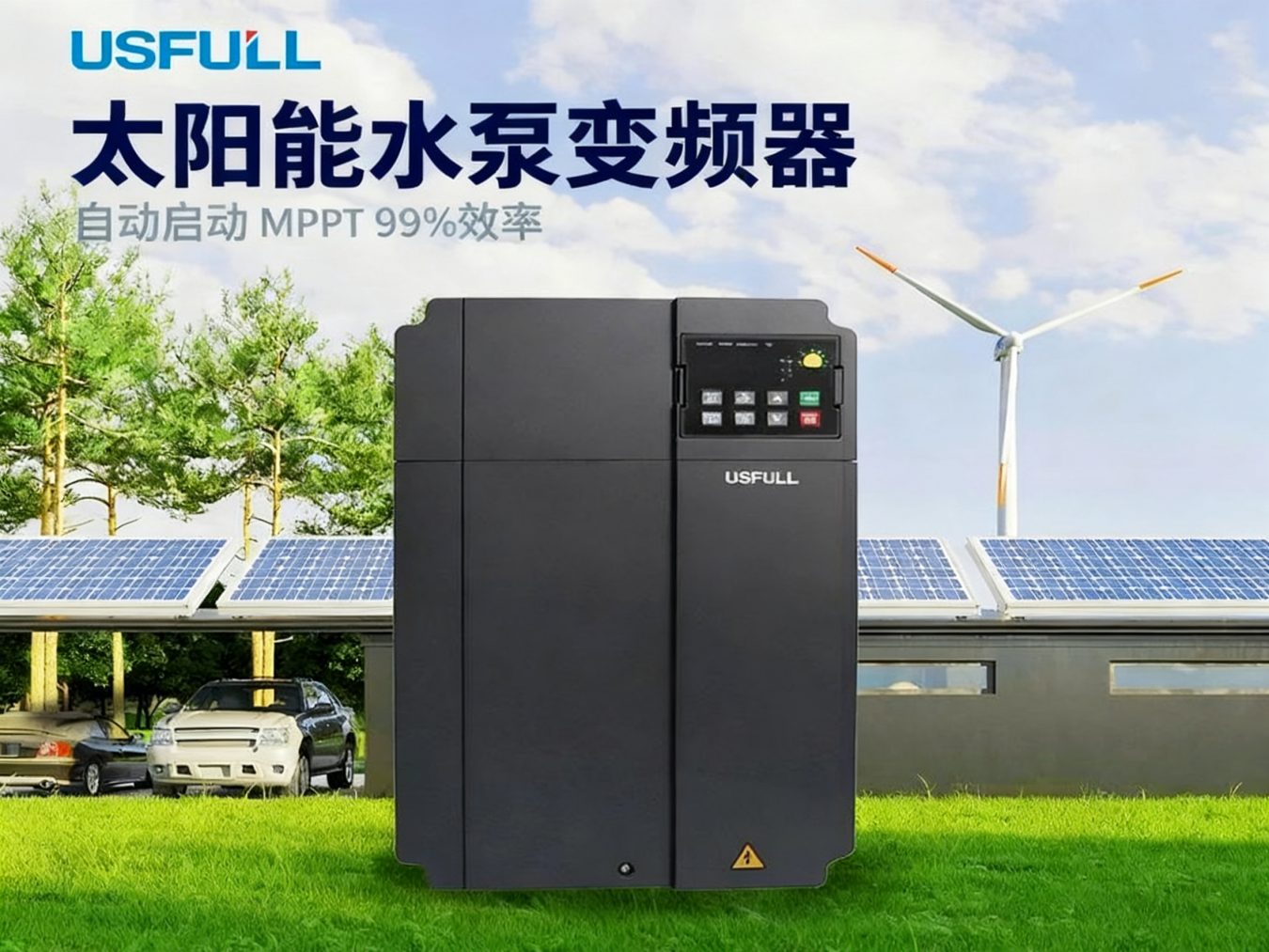

Advantages of USFULL Solar Pump Inverter

The USFULL FU9000SI solar pump inverter stands out due to its advanced features and performance:

• Fully automatic operation: No setup is required before running.
• Ease of use and maintenance: Simple to operate and maintain.
• High efficiency with MPPT (Maximum Power Point Tracking): Efficiency reaches up to 99%.
• Automatic restart: The inverter enters standby mode when clouds block sunlight and restarts automatically when sunlight returns.
• Versatile installation: Can be installed on a wall or inside a cabinet/combiner box.
• Flexible input sources: Accepts DC voltage from solar panels or AC voltage from the grid, with AC output to control various pumps or motors.

These features make the FU9000SI inverter a versatile and reliable choice for solar-powered water systems.

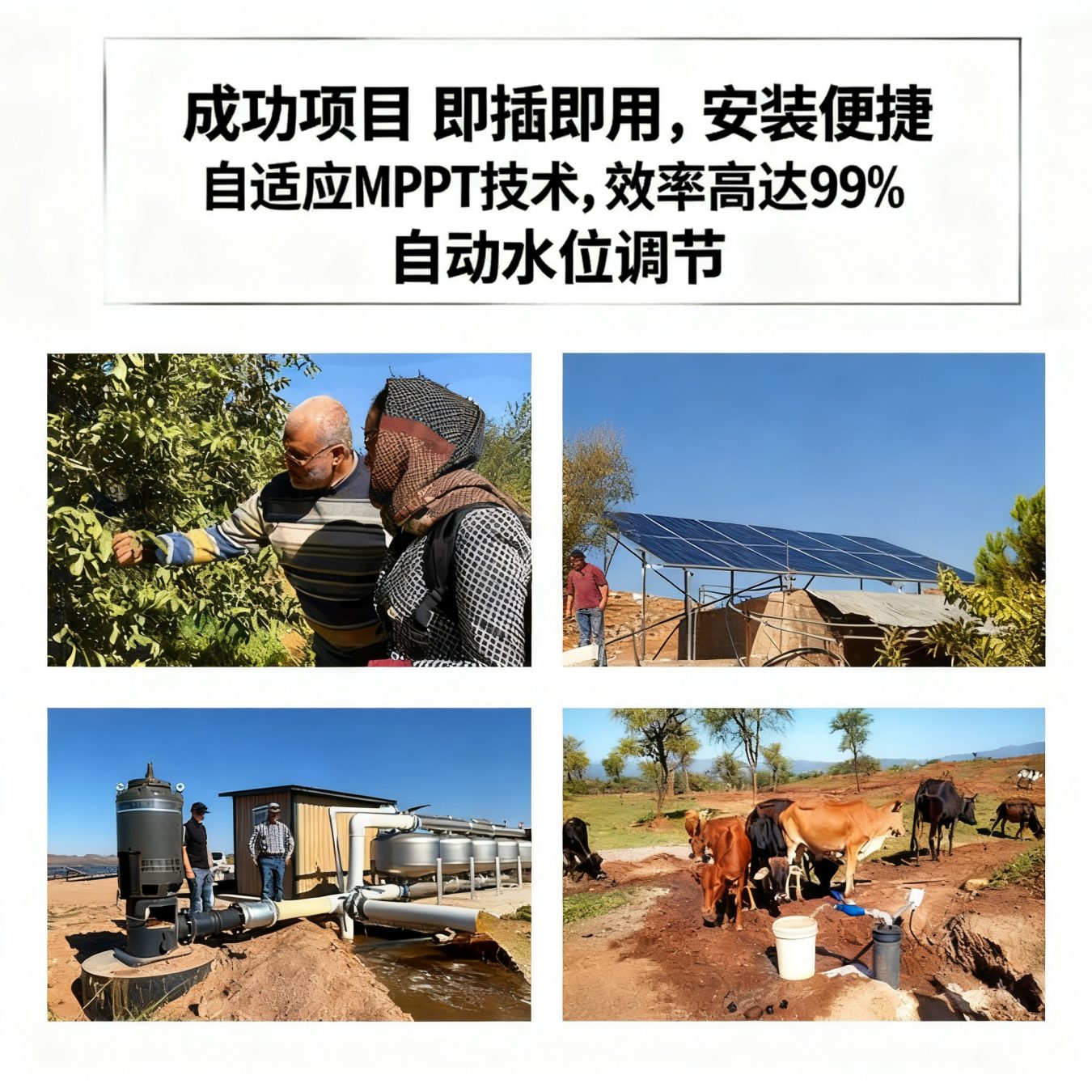

Successful Project of USFULL Solar Pump Inverter

The USFULL Solar Pump Inverter has been successfully deployed in numerous projects worldwide, delivering clean water to farms, rural communities, and families. Applications include:

• Irrigation systemsfor agricultural fields.
• Water reservoirsfor reliable storage.
• Rural water supplyprojects to improve community access to clean water.
• Swimming poolsand other water supply systems.

These projects not only provide water but also enhance the quality of life for countless people. By delivering clean water, USFULL contributes to a brighter and more sustainable future.

USFULL offers high quality solar pump inverter, every piece of inverter is strictly tested before delivery. We use best spare parts, together with best design, best performance and best quality control, we will offer you most satisfied solar pump inverter.
