| NC100H SPECIFICATION | |
| Rated Current (A) | 80, 100, 125 |
| Rated Voltage (V) | 230/ 400 |
| Mechanical and Electrical Life | 20000 times |

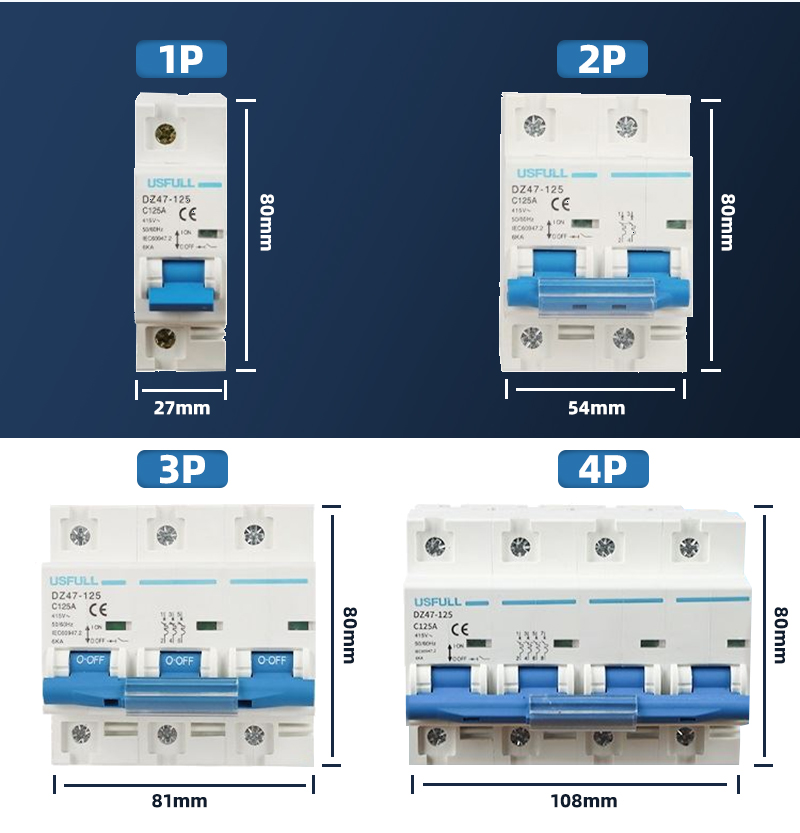

| Poles | 1, 2, 3, 4 |
| Breaking Capacity | 6kA |

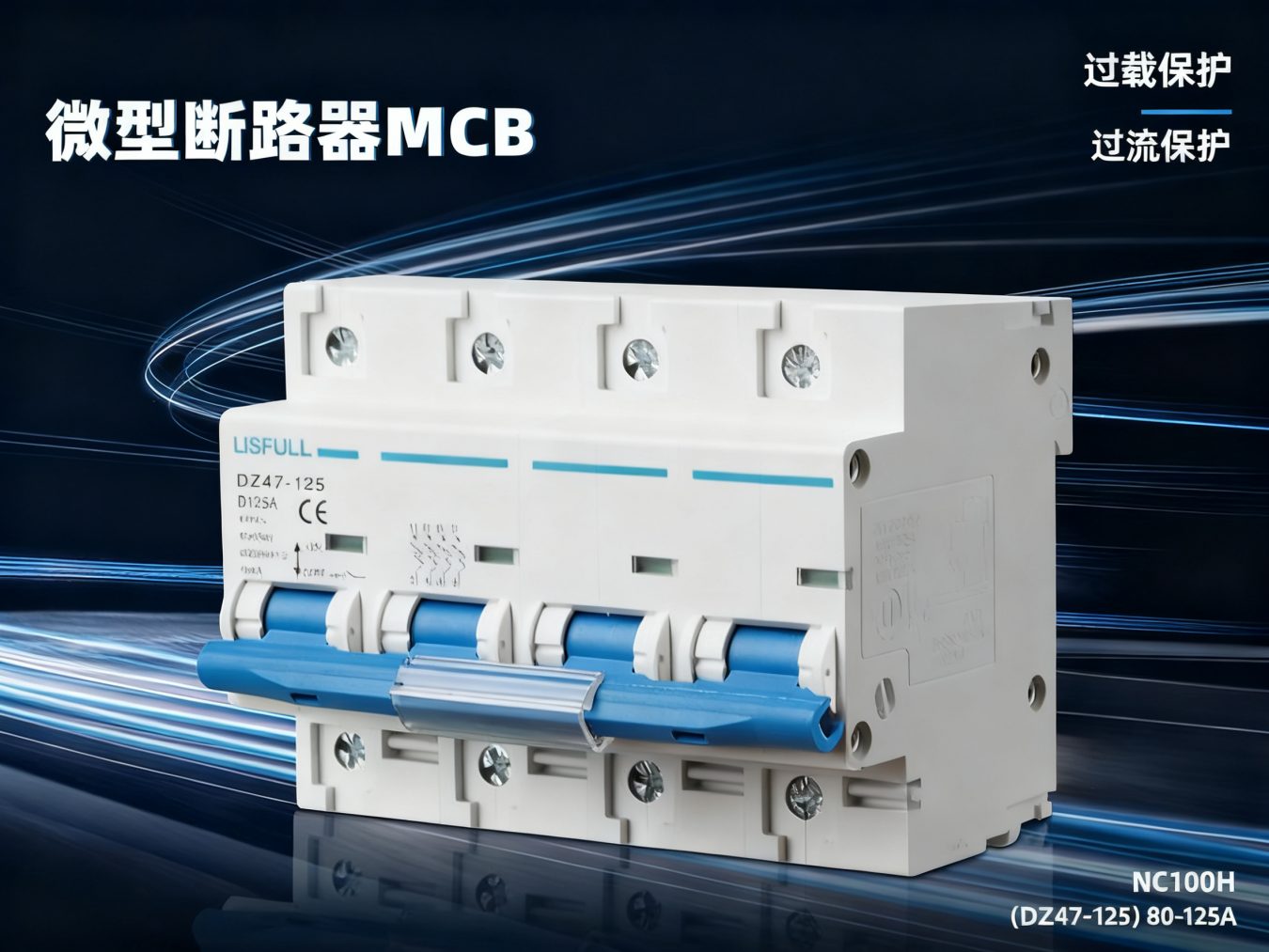

USFULL DZ47-125 (NC100H) Miniature Circuit Breaker
USFULL DZ47-125 (NC100H) Miniature Circuit Breaker
Description：
USFULL DZ47-125（NC100H）miniature circuit breaker ranges from 80A to 125.Application：
USFULL Z47-125（NC100H）can be used in lighting and electric motor distribution system. In the meantime, it is applicable to an un-frequent switchover the electric apparatus and lighting circuit under normal condition.获取报价
USFULL DZ47-125（NC100H）miniature circuit breaker ranges from 80A to 125.
USFULL Z47-125（NC100H）can be used in lighting and electric motor distribution system. In the meantime, it is applicable to an un-frequent switchover the electric apparatus and lighting circuit under normal condition.
It can also be used for un-frequent switch over of the circuit under normal conditions. This product conforms to the requirement of IEC60989 & GB10963 standard.

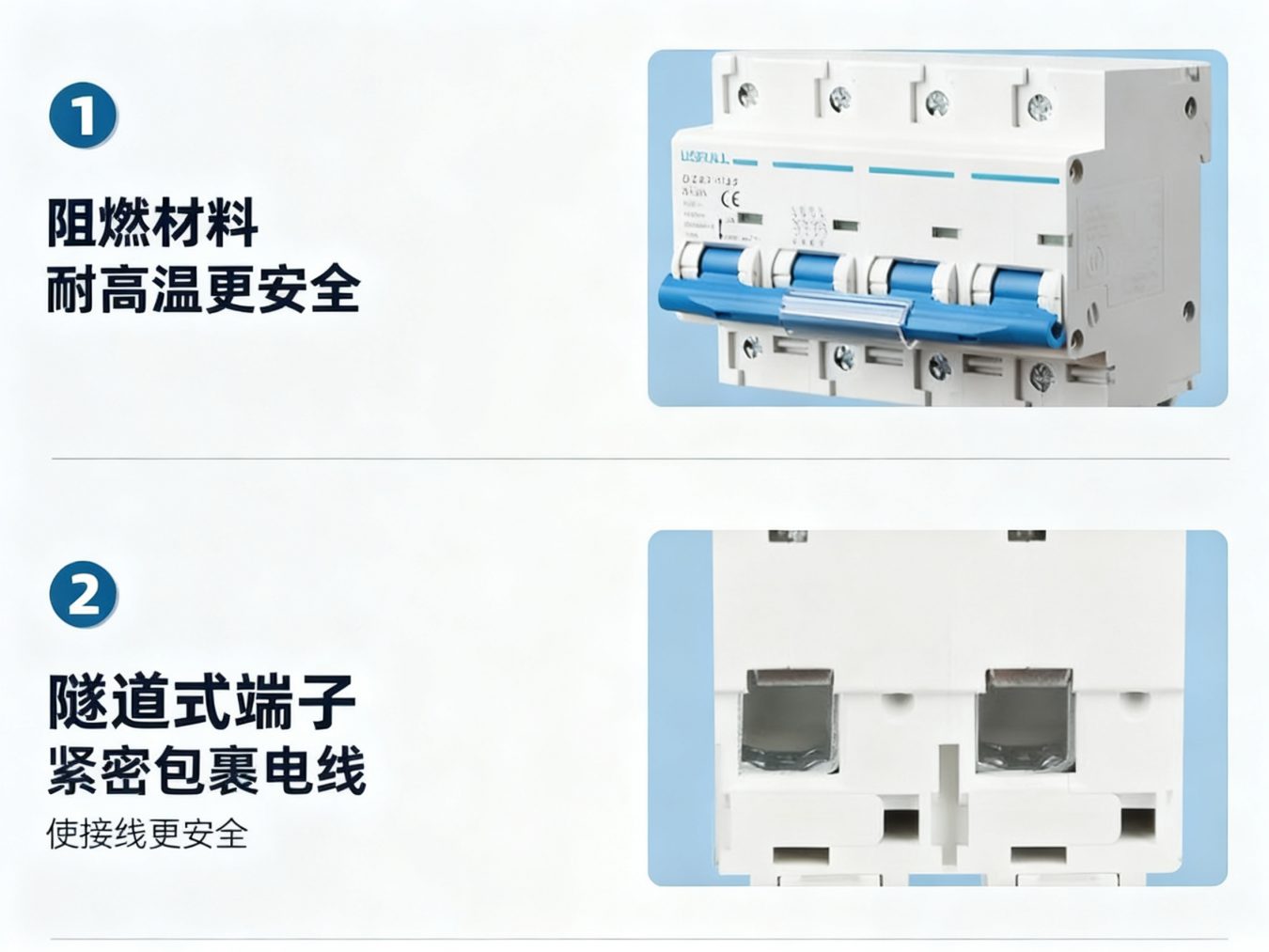

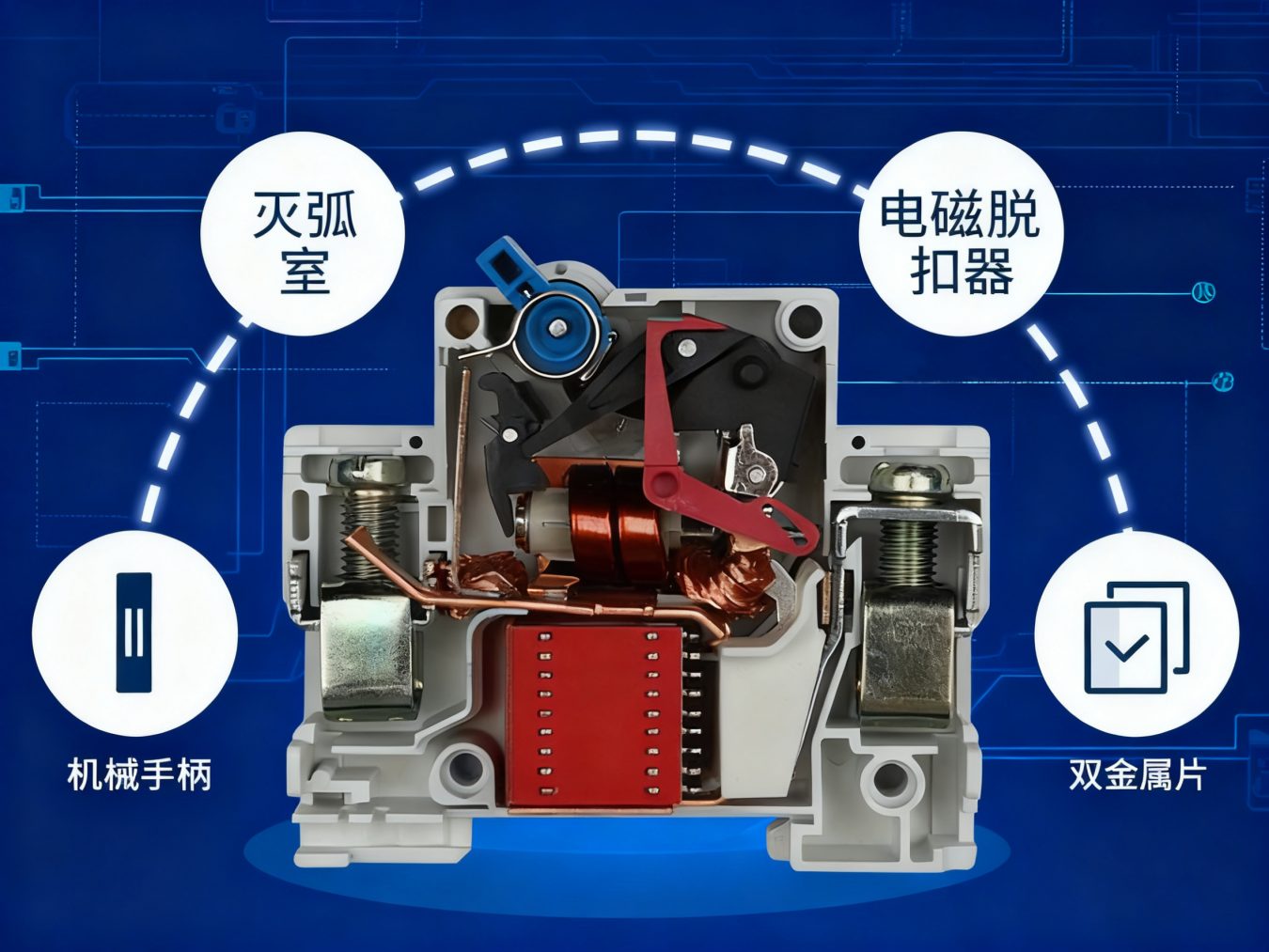

This circuit breaker has novel structure, reliable performance, high breaking capacity, pleasing outlook and small size. Its case and items are adopted by high fire-resistant and shockproof plastics.
Mechanical and Electrical Life 20000 times
Poles 1, 2, 3, 4
Breaking Capacity 6kA
It mainly used in the building office, house and similar building for illuminating at AC50Hz/60Hz, rated voltage below 400V, rated current below 125A, distribution circuit and equipment overload, short circuit protection.
