USFULL FU9000C Air Compressor VFD

USFULL FU9000C Air Compressor VFD

Description：

USFULL FU9000C Series VFD (Variable Frequency Drive) is a tailored solution to Air Compressor.
The speed of the air compressor motor is related to the performance of the air compressor.

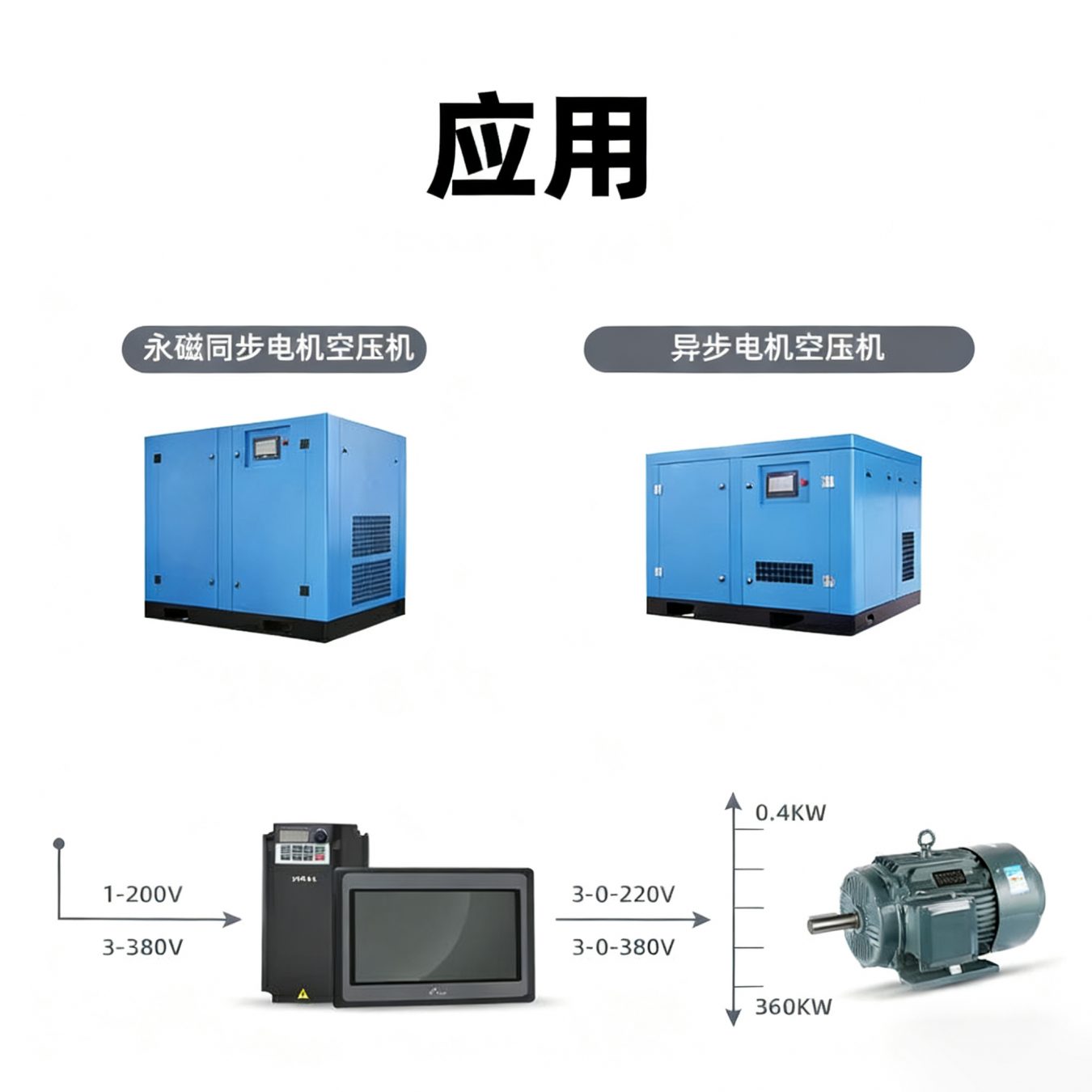

Application：

PMSM air Compressor
Asynchronous air Compressor

MODEL	INPUT	RATED POWER	RATED INPUT	RATED OUTPUT
MODEL	VOLTAGE	(KW)	CURRENT (A)	CURRENT (A)
FU9000C-0R7G-S2	1 Phase 220V-240V	0.75	8.2	4
FU9000C-1R5G-S2		1.5	14	7
FU9000C-2R2G-S2		2.2	23	9.6
FU9000C-004G-S2		11	46.5	45
FU9000C-5R5G-S2		15	62	60
FU9000C-7R5G-S2		18.5	76	75
FU9000C-0R7G-2	3 Phase 220V-240V	0.75	5	3.8
FU9000C-1R5G-2		1.5	5.8	5.1
FU9000C- 2R2G-2		2.2	10.5	9
FU9000C-004G-2		4	14.6	13
FU9000C-5R5G-2		5.5	26	25
FU9000C-7R5G-2		7.5	35	32
FU9000C-011G-2		11	46.5	45
FU9000C-015G-2		15	62	60
FU9000C-018G-2		18.5	76	75
FU9000C-022G-2		22	92	91
FU9000C-030G-2		30	113	112
FU9000C-037G-2		37	157	150
FU9000C-D45G-2		45	180	176
FU9000C-055G-2		55	214	210
FU9000C-0R7G-4	3 Phase 380V-480V	0.75	3.4	2.5
FU9000C-1R5G-4		1.5	5	3.7
FU9000C-2R2G-4		22	5.8	5
FU9000C-004G/5R5P-4		4.0/ 5.5	10/ 15	9/ 13
FU9000C-5R5G/7R5P-4		5.5/ 7.5	15/ 20	13/ 17
FU9000C-7R5G/011P-4		7.5/ 11	20/ 26	17/ 25
FU9000C-011G/015P-4		11/ 15	26/ 35	25/ 32 .
FU9000C-015G/018P-4		15/ 18.5	35/ 38	32/ 37
FU9000C-018G/022P-4		18.5/ 22	38/ 46	37/ 45
FU9000C-022G/030P-4		22/ 30	46/ 62	45/ 60
FU9000C-030G/037P-4		30/ 37	62/ 76	60/ 75
FU9000C-037G/045P-4		37/ 45	76/ 90	75/ 89
FU9000C-045G/055P-4		45/ 55	92/ 113	91/ 112
FU9000C-055G/075P-4		55/ 75	113/ 157	112/ 150
FU9000C-075G/090P-4		75/ 90	157/ 180	150/ 176
FU9000C-090G/110P-4		90/ 110	180/ 214	176/ 210
FU9000C-110G/132P-4		110/ 132	214/ 256	210/ 253
FU9000C-132G/160P-4		132/ 160	256/ 307	253/ 304
FU9000C-160G/185P-4		160/ 185	307/ 340	300/ 330
FU9000C-185G/200P-4		185/ 200	340/ 385	330/ 380
FU9000C-200G/220P-4		200/ 220	385/ 430	377/ 426
FU9000C-220G/250P-4		220/ 250	430/ 468	426/ 465
FU9000C-250G/280P-4		250/ 280	468/ 525	465/ 520
FU9000C-280G/315P-4		280/ 315	525/ 590	520/ 585
FU9000C-315G/350P-4		315/ 350	590/ 665	585/ 650
FU9000C-350G-4		350	665	650
FU9000C-400G-4		400	785	725
FU9000C-500G-4		500	883	820
FU9000C-630G-4		630	1080	1000

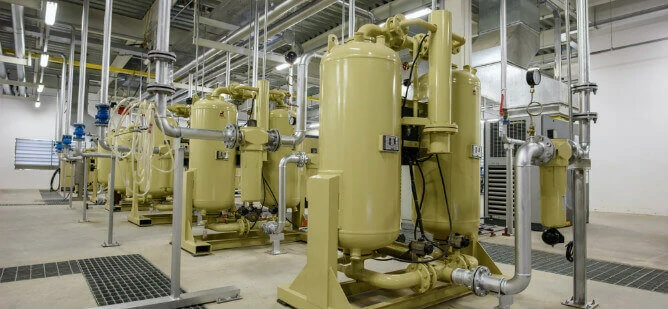

Air compressor is a machine with a motor or engine that compresses air to increase air pressure or supply air. As basic industrial equipment, air compressors have been widely used in multiple kinds of industrial fields such as metallurgy, machinery manufacturing, mining, electric power, textile, petrochemical, and textile industry.

The power consumption of the air compressor accounts for 15% of the total power consumption. Most air compressors have obvious inherent technical weaknesses due to their structure and principle. The adjustment of the output pressure is realized by manually adjusting the opening of the valve. Its disadvantages are slow adjustment speed, large fluctuation, poor stability and low precision.

USFULL FU9000C Series VFD (Variable Frequency Drive) is a tailored solution to Air Compressor.

The speed of the air compressor motor is related to the performance of the air compressor. By precisely synchronizing the voltage and frequency control in the air compressor system, the use of frequency converters in the air compressor system can achieve actual motor speed control without changing the air compressor motor torque.

Using VFD, the air compressor unit should reach the minimum pressure required by the industrial machine as the set pressure. The frequency converter changes the compressor speed according to the fluctuation trend of the pipeline pressure, which saves the exhaust process of the air compressor and saves electric energy.

We have two solutions.

1. Frequency Converter for Asynchronous Air Compressor

2. Frequency Converter for PMSM Air Compressor

It is common that no matter how diligent you are, the air compressor would suck up a lot of power from the grid. In this case, you need to add a USFULL frequency inverter. What’s more, as USFULL specializes in producing and installing air compressor inverters, we can offer our customers not only high-quality products but also professional installation services.

USFULL frequency inverter supports communication protocols including Modbus-RTU, Profibus-DP, Profinet etc.
