FU9000D general type VFD variable frequency drive is user friendly and easy for maintenance. The ac drive has many features such as save energy, increase torque, stable voltage, traverse control, control speed, protect motor, et cetera.
USFULL Variable Frequency Drive is a type of motor controller that drives an electric motor by varying the frequency and voltage supplied to the electric motor. We can all it VFD, Variable Speed Drive (VSD), Frequency Converter, AC drive, or Inverter.

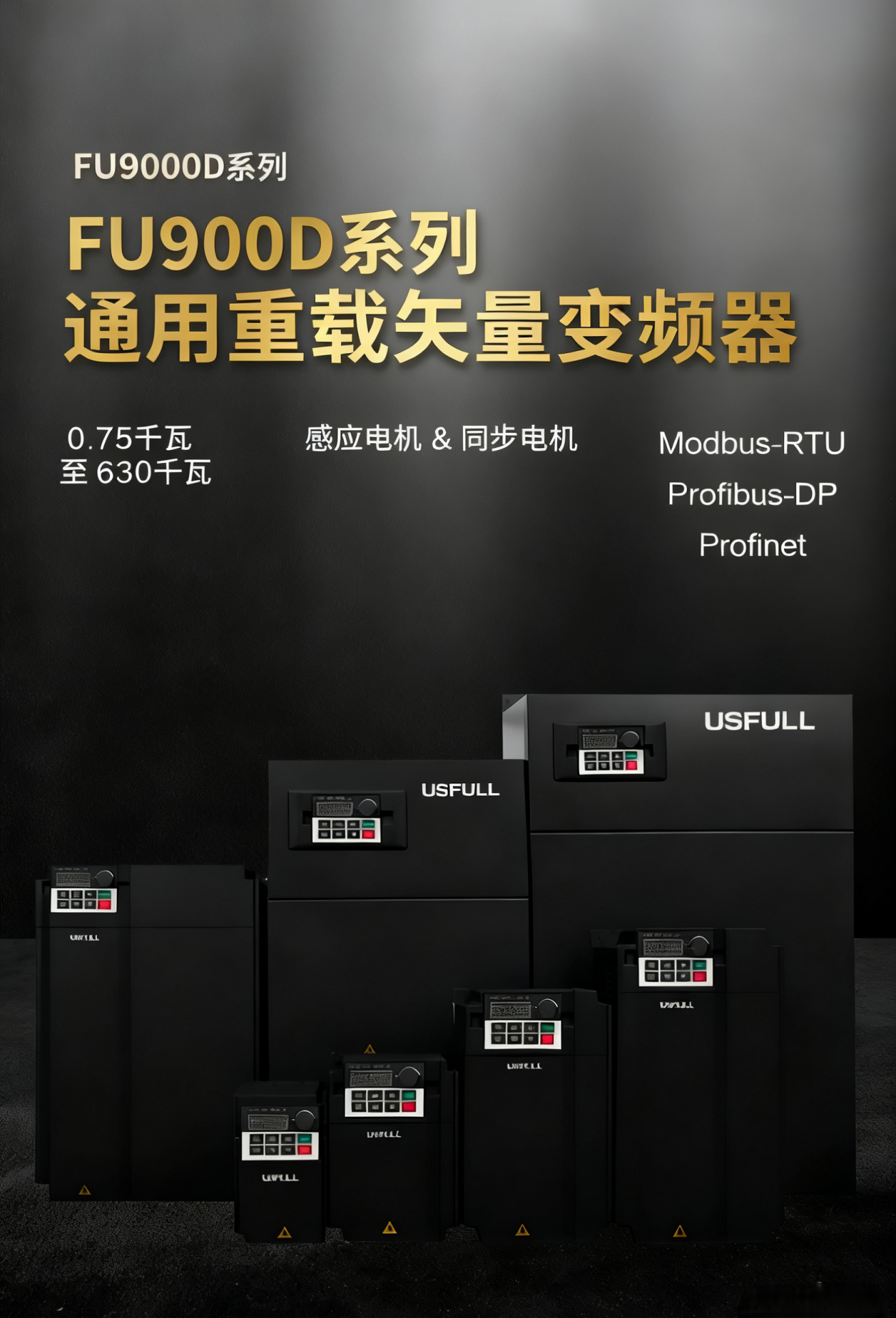

USFULL Variable Frequency Drive has a simple and elegant appearance, and the book-type structure design saves installation space.
Applied in Food Processing Machine, Oil Production, Mining Equipment, Pumps, Crane, Hoist, Air Compressors and so on. We offer FU9000D General Type Inverter, FU9000MD Mini Type Inverter, FU9000H Crane & Hoist Inverter, FU9000C Air Compressor Inverter and FU9000P Water Proof Inverter.
USFULL Variable Frequency Drive has many features: intelligent setting parameters, simple PLC operation, motor protection, auto tuning function for PMSM, energy saving, stable voltage automatically, traverse control, and so on.
* Open loop V/F & SVC control

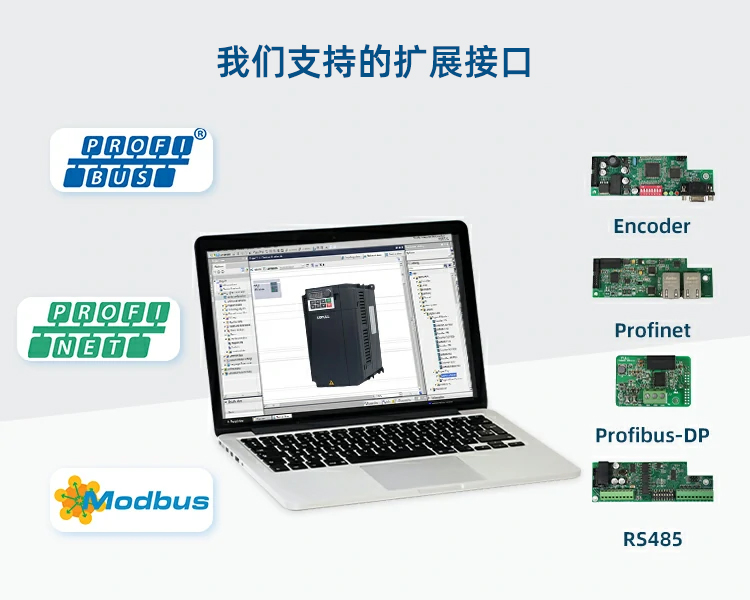

* Flexible programmable I/O connection
* Closed loop FVC control
* User programmable function
* Starting torque
* Variable Dc-injection braking
150% at 0.5 Hz for svc
* Comprehensive trip diagnostic
180% at 0 Hz for FVC
* Output frequency 500 Hz
* Automatic torque boost
* Built-in dynamic braking unit
* Slip compensation

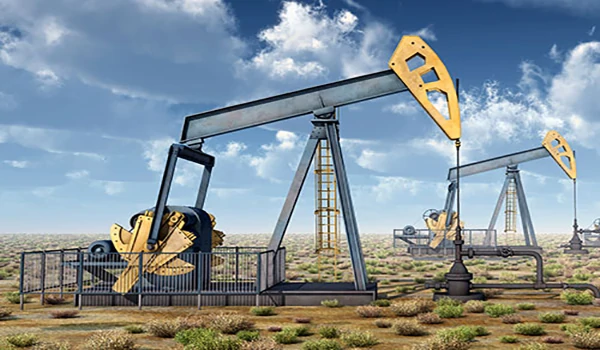

Under the down-hole condition, for Progressive Cavity Pumping System and Electric Submersible Pumping System. USFULL offers special efficient control settings with flexibility, easy operation and reliability in order to change the stroke and improve the efficiency of pumping.

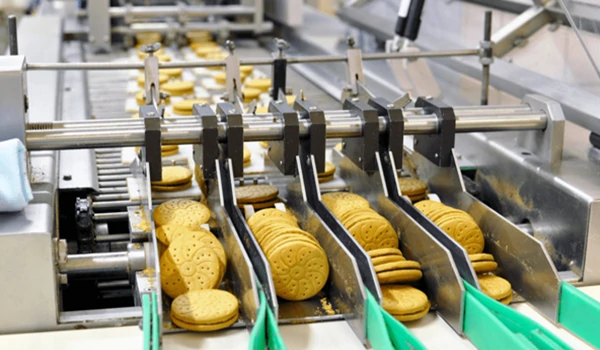

Drives for food processing industry.With three-line control mode and swift changing of communication and manual mode, workers can easily control conveyors in multi-speed and control multi-lines via central PLC or PC.

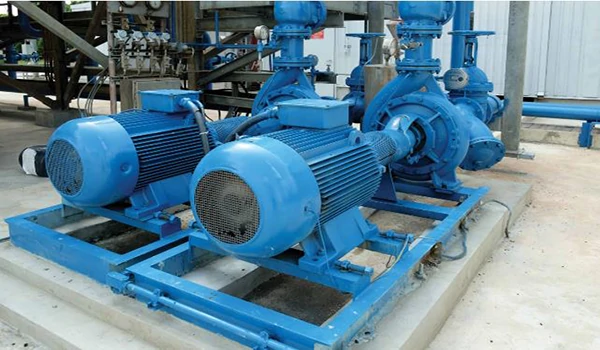

Drives for industry water and booster pumps USFULL VFD offers constant pressure water supply function and can run multiple pumps synchronously. External pressure sensor and extension board are supported as well.

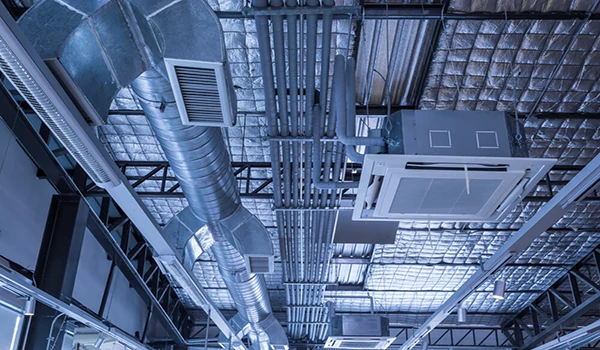

Drives for commercial HVAC system.Global warming and frequent occurrence of extreme climates has been a great challenge for HVAC. USFULL air compressor VFD provides more energy-saving, environmentally friendly and efficient systems.
MODEL
INPUT
VOLTAGE
RATED POWER
(KW)
RATED INPUT
CURRENT (A)
RATED OUTPUT
CURRENT (A)
FU9000D-0R7G-S2
1 Phase
220V-240V
0.75
8.2
4
FU9000D-1R5G-S2
1.5
14
7
FU9000D-2R2G-S2
2.2
23
9.6
FU9000D-0R7G-2
3 Phase
220V-240V
0.75
5
3.8
FU9000D-1R5G-2
1.5
5.8
5.1
FU9000D- 2R2G-2
2.2
10.5
9
FU9000D-004G-2
4
14.6
13
FU9000D-5R5G-2
5.5
26
25
FU9000D-7R5G-2
7.5
35
32
FU9000D-011G-2
11
46.5
45
FU9000D-015G-2
15
62
60
FU9000D-018G-2
18.5
76
75
FU9000D-022G-2
2.2
92
91
FU9000D-030G-2
30
113
112
FU9000D-037G-2
37
157
150
FU9000D-D45G-2
45
180
176
FU9000D-055G-2
55
214
210
FU9000D-0R7G-4
3 phase
380V-480V
0.75
3.4
2.5
FU9000D-1R5G-4
1.5
5
3.7
FU9000D-2R2G-4
22
5.8
5
FU9000D-004G-4
4.0
10
9
FU9000D-5R5G-4
5.5
15
13
FU9000D-7R5G-4
7.5
20
17
FU9000D-011G-4
11
26
25
FU9000D-015G-4
15
35
32
FU9000D-018G-4
18.5
38
37
FU9000D-022G-4
22
46
45
FU9000D-030G-4
30
62
60
FU9000D-037G-4
37
76
75
FU9000D-045G-4
45
92
91
FU9000D-055G-4
55
113
112
FU9000D-075G-4
75
157
150
FU9000D-090G-4
90
180
176
FU9000D-110G-4
110
214
210
FU9000D-132G-4
132
256
253
FU9000D-160G-4
160
307
300
FU9000D-185G-4
185
340
330
FU9000D-200G-4
200
385
377
FU9000D-220G-4
220
430
426
FU9000D-250G-4
250
468
465
FU9000D-280G-4
280
525
520
FU9000D-315G-4
315
590
585
FU9000D-350G-4
350
665
650
FU9000D-400G-4
400
785
725
FU9000D-450G-4
450
820
782
FU9000D-500G-4
500
883
820
FU9000D-630G-4
630
1080
1000
With the strict ERP system to control each unit of raw material, to make the best quality for customers and considerate service for customers.
We have ISO and IEC test report and CE certificate for solar pump inverter, guarantee the quality and ensure the purchase is worry-free.
Why should we use FU9000D Variable Frequency Drive?
1 – Reduce Energy Consumption and Energy Costs
2 – Increase Production Through Tighter Process Control
3 – Extend Equipment Life and Reduce Maintenance
4 – Control the Starting Current and reduced Power Line Disturbances
5 – Adjustable Operating Speed and Torque Limit
6 – Elimination of Mechanical Drive Components
Welcome to send us inquiry and discuss more details!
