Salt Mist Spray Test, Degree of Severity 5: IEC 60068-2-52
USFULL PV Branch Connector
Connector Type:
2T/3T/4T/5T/6T
Rated Voltage:
1000V DC
Rated Current:
20A(4mm²), 30A(6mm²)
Test Voltage:
6000V DC
Cable Outer Diameter:
2.5mm² ~ 6mm²
Ambient Temperature Range:
-40℃ ~ +110℃
Degree of Protection,Mated:
IP67
Contact Resistance:
≤1mΩ
Insulation Resistance:
>500mΩ
Contact Material:
Copper alloy, Tin plated
Insulation Material:
PPO
Terminal Connection:
Crimping
Flame Class:
UL94-V0
Safety Class:
Ⅱ
USFULL PV Y Branch Connector
Connector Type:
2Y/3Y/4Y/5Y/6Y
Rated Voltage:
1000V DC
Rated Current:
20A(4mm²), 30A(6mm²)
Test Voltage:
6000V DC
Cable Outer Diameter:
2.5mm² ~ 6mm²
Ambient Temperature Range:
-40℃ ~ +110℃
Degree of Protection, Mated:
IP67
Contact Resistance:
≤1mΩ
Insulation Resistance:
>500mΩ
Contact Material:
Copper alloy, Tin plated
Insulation Material:
PPO
Terminal Connection:
Crimping
Flame Class:
UL94-V0
Safety Class:
Ⅱ
USFULL Solar Connector, users can directly connect solar panel to inverter, without the consideration of anti-reverse device.
For different system, you can choose different voltage.
USFULL PV connectors are widely used in solar system, from small charge controller, home use inverter system, to larger type inverter system, we offer various types of connectors, always be one of them suitable for you.
The feature of solar connector:
Stable Self-Locking Structure, easy to open and close
The shell adopts high-strength PPO Plastic
Strong sealing and Waterproof connector
With thick copper inner core and better conductivity

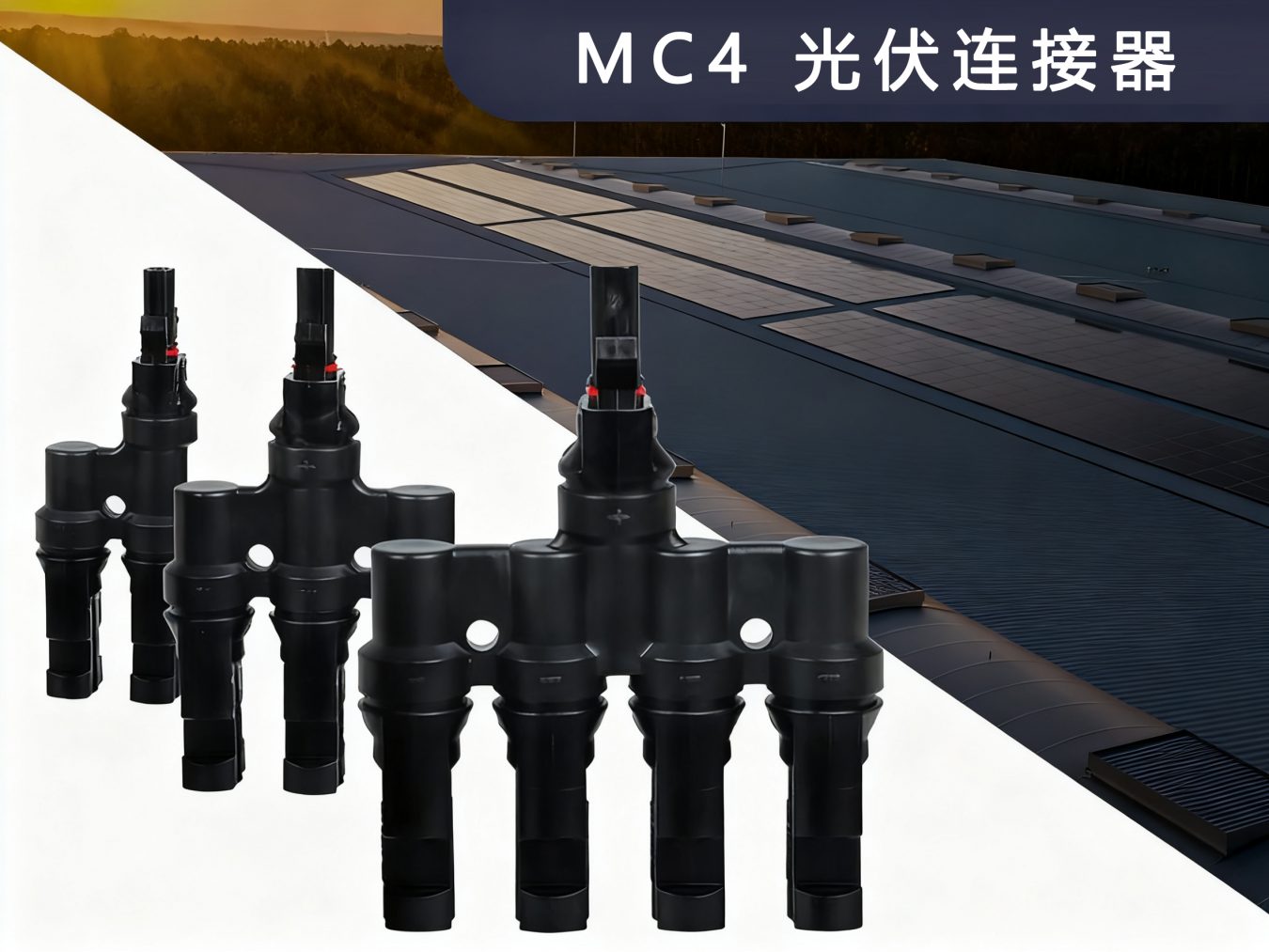

SOLAR T- BRANCH PARALLEL CONNECTORS
Specification:
• Insulation Material: PPO
• Rated Current: 20A(4mm²）
• Rated Voltage: DC1000V
• Contact Resistance: ≤5mΩ
• Insulation Resistance: >500mΩ
• Operating Temperature Range: -40℃ until+90℃
• Degree of Protection: IP67
• Flame Class: UL94-V0
• Safety Degree: Ⅱ
• Suitable Single Core Cable Section: 1.5mm² — 6mm²
SOLAR Y- BRANCH PARALLEL CONNECTORS
Ensure safe and efficient usage of solar panel connecting to inverter, without worry of wrong connection.
For any further questions, welcome to send inquiry and let us know!
